Defining lattice models¶

This section explains how to define lattice models through python calls.

A simple example¶

The following simple example illustrates how to define a Hubbard model on the square lattice in two dimensions:

import pyqcm

CM = pyqcm.cluster_model(4, 0, 'clus', ((4, 3, 2, 1),))
clus = pyqcm.cluster(CM, ((0, 0, 0), (1, 0, 0), (0, 1, 0), (1, 1, 0)))
model = pyqcm.lattice_model('2x2_C2', clus, ((2, 0, 0), (0, 2, 0)))
model.interaction_operator('U')
model.hopping_operator('t', (1, 0, 0), -1)
model.hopping_operator('t', (0, 1, 0), -1)
model.hopping_operator('t2', (1, 1, 0), -1)
model.hopping_operator('t2', (-1, 1, 0), -1)
model.hopping_operator('t3', (2, 0, 0), -1)
model.hopping_operator('t3', (0, 2, 0), -1)
model.anomalous_operator('D', (1, 0, 0), 1)
model.anomalous_operator('D', (0, 1, 0), -1)
model.density_wave('M', 'Z', (1, 1, 0))

There is a call to cluster_model() to define a \(2\times2\) plaquette with a \(C_2\) symmetry (rotation by 180 degrees). Then another object, of type cluster, is defined based on this model. This object has geometrical meaning, whereas the cluster_model does not. The cluster constructor takes the following arguments:

The cluster_model object it is based on
An array of integer positions of the different cluster sites. This is where the geometry of the cluster appears.
The base position of the cluster within the super unit cell ( [0,0,0] by default). This is just added for convenience when complex super unit cells are built out of the same cluster, shifted in position.

Once the different clusters (or the single cluster) have been defined, one can construct an object of type lattice_model that contains the different clusters arranged in a super-lattice. The constructor takes the following arguments:

The name of the model, for reporting purposes
The cluster (or sequence of clusters) forming the repeated unit.
The \(d\) vectors defining the superlattice vectors. \(d\) is the dimension of the model.
The \(d\) vectors defining the lattice vectors of the model. In the above example this is omitted because the default value is used: ((1,0,0), (0,1,0)).

Note that all vectors used in these specifications have three components (even for lower dimensional models) and have integer components. They are in fact coefficients of basis vectors generating a working Bravais lattice and are therefore integers by definition (not all vectors of this working Bravais lattice need belong to the actual Bravais lattice of the model; the case of the graphene lattice is illustrated below). They can be tuples, lists or numpy arrays. We recommend using tuples for simplicity.

Once the geometry of the model is defined, operators can be added to the model via various functions. The Hubbard on-site interaction is added with a call to the lattice_model member function interaction_operator('U'), whose sole argument in this case is the name we choose for that operator (more arguments are needed for other types of interactions, multi-band models, etc; see the detailed documents in the reference section on functions).

Nearest-neighbor hopping is defined with a call to the member function hopping_operator(), which has three mandatory arguments:

The name of the operator
The link on which the operator is defined
The amplitude of the operator on that link.

Optional keyword arguments are needed for multi-band models, spin-flip operators, etc. In the above example this function is called twice with the same name but different links (along (1,0,0) and (0,1,0) respectively). The matrix elements generated by the two calls are simply added to the list associated with this operator. Similar calls are performed for the second-neighbor hopping t2 and the third-neighbor hopping t3.

A d-wave pairing operator is defined via a call to anomalous_operator() , which takes the same arguments as hopping_operator(), i.e., name, link and amplitude. Note that two calls are made with the same name D, one in the \(x\) direction, the other one in the \(y\) direction, with amplitudes 1 and -1, in accordance with the d-wave character of the operator.

Finally, a density wave corresponding to \((\pi,\pi)\) antiferromagnetism is added, with a call to density_wave(), which has 3 mandatory arguments:

The name of the operator (here ‘M’)
The type of density-wave (here ‘Z’ for a spin density wave in the \(z\) component of the spin). Other possibilities are:
- ‘N’ : charge density wave
- ‘X’ : spin density wave in the \(x\) component of the spin
- ‘spin’ : same as Z
- ‘singlet’ : singlet pairing
- ‘dx’ : triplet pairing in the \(x\) direction using the \(\mathbf{d}\) vector formalism.
- ‘dy’ : same, in the \(y\) direction
- ‘dz’ : same, in the \(z\) direction (this one does not require Nambu doubling)
The wavevector \(\mathbf{Q}\) of the density wave. It has real components (in multiples of \(\pi\)) and it must be commensurate with the super unit cell within some small numerical tolerance.

Additional keyword arguments to density_wave() include the link on which the density wave is defined (for bond-density waves), lattice orbitals involved (for multi-band models), additional phases and amplitudes, etc. Again, see the reference section for details.

A more complex example¶

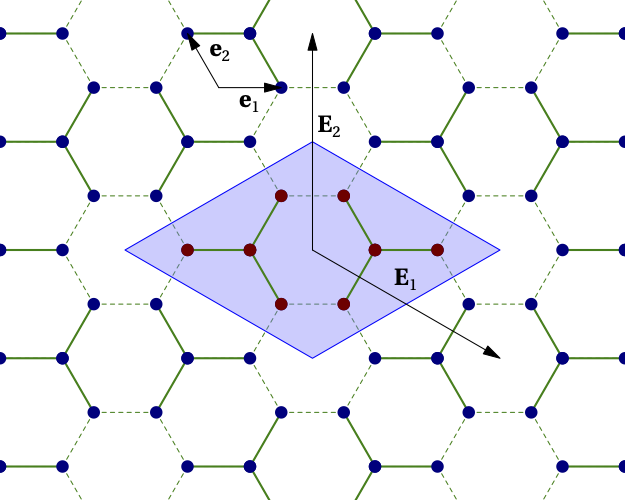

The following example defines a model on the graphene lattice using two cluster within the super unit cell and the graphene lattice, as illustrated below:

Of possible set of function calls to define the Hubbard model on this system is:

from cluster_h4_6b_C3 import CM
import pyqcm

C1 = pyqcm.cluster(CM, [[0, 0, 0], [-1, 0, 0], [1, 1, 0], [0, -1, 0]], [-1, 0, 0])
C2 = pyqcm.cluster(CM, [[0, 0, 0], [1, 0, 0], [-1, -1, 0], [0, 1, 0]], [1, 0, 0])
model = pyqcm.lattice_model('h4_6b_C3', (C1, C2), [[2, -2, 0],[2, 4, 0]], [[1, -1, 0], [2, 1, 0]])
model.set_basis([[1, 0, 0], [-0.5, 0.866025403784438, 0], [0, 0, 1]])

model.interaction_operator('U')
model.hopping_operator('t', [1,0,0], -1, orbitals=(2,1))
model.hopping_operator('t', [0,1,0], -1, orbitals=(2,1))
model.hopping_operator('t', [-1,-1,0], -1, orbitals=(2,1))

The first statement, from cluster_h4_6b_C3 import CM, imports a cluster definition file, for instance the one associated with Fig. 2 above, in which the cluster_model object named CM was defined. Two copies of the clusters are added to the super unit cell. The positions associated with the two copies are different, but the cluster model is the same, which means that only one copy of the Hilbert space operators and bases necessary for the exact diagonalization will be constructed. The origin has been placed exactly between the two clusters. The positions in each cluster are defined relative to the base position of each cluster.

The integer positions are defined in terms of the basis defined by the call to set_basis(). The argument of that function is a set of real-valued vectors defining the basis vectors of the working Bravais lattice. On Fig. 3, the first two of these vectors are \(\mathbf{e}_1\) and \(\mathbf{e}_2\).

The call to lattice_model() defines both the superlattice vectors \(\mathbf{E}_1\) and \(\mathbf{E}_2\) (second argument) and the basis vectors of the model’s physical Bravais lattice (third argument). The lattice basis vectors only serve to attribute orbital labels to the different sites. In qcm, each degree of freedom of a given spin (i.e. each orbital) must have its own site on the working Bravais lattice. The basis vectors of the physical Bravais lattice then define orbital labels (from 1 to \(N_\mathrm{band}\)) attributed to each site. The order in which orbitals are labelled depends on the order in which the sites appear. Given the above definitions and Fig. 3, the A sublattice of graphene corresponds to orbital 2 and the B sublattice to orbital 1.

Given that the model has two bands, the definition of the hopping operator t must contain orbital information: the keywords orbitals (a tuple) is used to specify the orbital numbers associated with the two sites separated by the bond vector (link) given in argument. Internally, a loop is done over all sites of the super unit cell; the bond vector is used to identify a second site; if that site exists and if the orbitals associated with the two sites agree with orbitals, then a matrix element is added to the operator. In the above example, three calls are needed because of the three directions (bonds).

The greatest risk in such calls is to mislabel the orbitals. In order to check that operators were defined properly, a submodule called draw_operator is provided, that can draw on the screen a schematic view of each operator defined on the lattice or in a particular cluster model.

Other examples¶

The distribution contains a folder (notebooks) that contains many examples of models and codes. New users are encouraged to study a few of these models and to consult the reference section for more detailed information about model building.

Class lattice_model¶

class lattice_model(name, clus, superlattice, lattice=None)¶

Class containing the unique model studied by this library

Parameters:

name (str) – a name given to the model, for reference in the output data
clus ([cluster]) – a single object or a sequence of objects of the class cluster, forming the repeated unit
superlattice ([[int]]) – the integer-component vectors defining the superlattice. Their number is the spatial dimension of the model.
lattice ([[int]]) – the the integer-component vectors defining the lattice. Used to define bands.

Hartree_procedure(task, couplings, maxiter=10, eps_algo=0, file='hartree.tsv', SEF=False, pr=False)¶

Performs the Hartree approximation

Parameters:

task – task to perform within the loop. Must return a model_instance
couplings ([hartree]) – sequence of couplings (or single coupling)
maxiter (int) – maximum number of iterations
eps_algo (int) – number of elements in the epsilon algorithm convergence accelerator = 2*eps_algo + 1 (0 = no acceleration)

Returns:

None

anomalous_operator(name, link, amplitude, orbitals=None, **kwargs)¶

Defines an anomalous operator

Parameters:

name (str) – name of operator
link ([int]) – bond vector (3-component integer array)
amplitude (complex) – pairing multiplier
orbitals ((int,int)) – lattice orbital labels (start at 1); if None, tries all possibilities.

Keyword Arguments:

type (str) – one of ‘singlet’ (default), ‘dz’, ‘dy’, ‘dx’

Returns:

None

controlled_loop(task, varia=None, loop_param=None, loop_range=None, control_func=None, retry=None, max_retry=4, predict=True)¶

Performs a controlled loop for VCA or CDMFT with a predictor. The definition of each model instance must be done and returned by ‘task’; it is not done by this looping function.

Parameters:

task – a function called at each step of the loop. Must return a model_instance.
varia ([str]) – names of the variational parameters
loop_param (str) – name of the parameter looped over
loop_range ((float, float, float)) – range of the loop (start, end, step)
control_func – (optional) name of the function that controls the loop (returns boolean). Takes a model instance as argument
retry (char) – If None, stops on failure. If ‘refine’, adjusts the step (divide by 2) and retry. If ‘skip’, skip to next value.
max_retry (int) – Maximum number of retries of either type
predict (boolean) – if True, uses a linear or quadratic predictor

density_wave(name, t, Q, **kwargs)¶

Defines a density wave

Parameters:

name (str) – name of operator
t (str) – type of density-wave – one of ‘Z’, ‘X’, ‘Y’, ‘N’=’cdw’, ‘singlet’, ‘dz’, ‘dy’, ‘dx’
Q (wavevector) – wavevector of the density wave (in multiple of \(pi\))

Keyword Arguments:

link ([int]) – bond vector, for bond density waves
amplitude (complex) – amplitude multiplier. Caution: A factor of 2 must be used in some situations (see Density waves)
orb (int) – orbital label (0 by default = all orbitals)
phase (float) – real phase (as a multiple of \(pi\))

Returns:

None

draw_cluster_operator(clus, op_name, show_labels=True, values=False, spin_offset=0.15, plt_ax=None)¶

Draws an operator defined on a cluster model to the screen (for debugging purposes)

Parameters:

clus (cluster) – instance of a cluster
op_name (str) – name of the operator
show_labels (boolean) – if True, shows the labels of the cluster
values (boolean) – if True, prints de values of the elements
spin_offset (float) – graphical offset between up and down spins
plt_ax – optional matplotlib axis set, to be passed when one wants to collect a subplot of a larger set

draw_operator(op_name, show_labels=False, show_orb_labels=True, show_neighbors=False, values=False, offset=0.05, orb_offset=0.05, z_offset=0.0, alpha_inter=0.2, plt_ax=None)¶

Draws an operator defined on a lattice model to the screen (for debugging purposes)

Parameters:

op_name (str) – name of the operator
show_labels (boolean) – if True, shows the labels of the cluster
show_neighbors (boolean) – if True, shows the neighbors of the central cluster
values (boolean) – if True, prints de values of the elements
offset (float) – offset between sites and labels
orb_offset (float) – offset between sites and orbital labels
z_offset (float) – offset between sites and labels for sites along the z axis
alpha_inter (float) – alpha value of the inter-cluster links
plt_ax – optional matplotlib axis set, to be passed when one wants to collect a subplot of a larger set

explicit_operator(name, elem, **kwargs)¶

Defines an explicit operator

Parameters:

name (str) – name of operator
elem ([(list, list, complex)]) – List of tuples. Each tuple contains three elements (in order): a list representing position, a list representing link and a complex amplitude.

Keyword Arguments:

tau (int) – specifies the tau Pauli matrix (0,1,2,3)
sigma (int) – specifies the sigma Pauli matrix (0,1,2,3)
type (str) – one of ‘one-body’ [default], ‘singlet’, ‘dz’, ‘dy’, ‘dx’, ‘Hubbard’, ‘Hund’, ‘Heisenberg’, ‘X’, ‘Y’, ‘Z’

Returns:

None

fade(task, p1, p2, n)¶

fades the model between two sets of parameters, in n steps

Parameters:

task – task to perform wihtin the loop
p1 (dict) – first set of parameters
p2 (dict) – second set of parameters
n – number of steps

fidelity(I1, I2, clus=0)¶

computes the fidelity between the two instances I1 and I2, i.e. the overlap squared of the ground states (or generalization thereof in case of a mixed state)

Parameters:

I1 (model_instance) – first model instance
I2 (model_instance) – second model instance
clus (int) – cluster label

finalize()¶

Sets some data for the model following the first instance declaration e.g. the mixing state of the system:

0 – normal. GF matrix is n x n, n being the number of sites
1 – anomalous. GF matrix is 2n x 2n
2 – spin-flip. GF matrix is 2n x 2n
3 – anomalous and spin-flip (full Nambu doubling). GF matrix is 4n x 4n
4 – up and down spins different. GF matrix is n x n, but computed twice, with spin_down = false and true

fixed_density_loop(task, target_n, initial_mu, kappa=1.0, maxdmu=0.2, loop_param=None, loop_values=None, var_param=None, dens_tol=0.001, dir='', measure=None, cluster_density=False)¶

Performs a loop while trying to keep a fixed density

Parameters:

task – function called at each step of the loop. No required argument; must return a model_instance.
target_n (float) – desired value of the density
initial_mu (float) – initial value of mu
kappa – initial guess of the compressibility
maxdmu – maximum change in mu at each step (absolute value)
loop_param (str) – name of the parameter looped over
loop_values (float) – an array of values of loop_param
var_param (str) – array of variational parameters (names) to be predicted
dens_tol – tolerance on the value of the density
dir – directory of calling script
measure – name of function to be called when the desired density is reached
cluster_density – if True, uses the cluster density instead of the lattice density

hopping_operator(name, link, amplitude, orbitals=None, **kwargs)¶

Defines a hopping term or, more generally, a one-body operator

Parameters:

name (str) – name of operator
link ([int]) – bond vector (3-component integer array)
amplitude (float) – hopping amplitude multiplier
orbitals ((int,int)) – lattice orbital labels (start at 1); if None, tries all possibilities.

Keyword Arguments:

tau (int) – specifies the tau Pauli matrix (0,1,2,3)
sigma (int) – specifies the sigma Pauli matrix (0,1,2,3)

Returns:

None

interaction_operator(name, link=None, orbitals=None, **kwargs)¶

Defines an interaction operator of type Hubbard, Hund, Heisenberg or X, Y, Z

Parameters:

name (str) – name of the operator
orbitals ((int,int)) – lattice orbital labels (start at 1); if None, tries all possibilities.
link ([int]) – link of the operator (None by default)

Keyword Arguments:

amplitude (float): amplitude multiplier
type (str): one of ‘Hubbard’, ‘Heisenberg’, ‘Hund’, ‘X’, ‘Y’, ‘Z’

Returns:

None

linear_loop(N, task, varia=None, params=None, predict=True)¶

Performs a loop with a predictor. The definition of each model instance must be done in ‘task’; it is not done by this looping function.

Parameters:

N – number of intervals within the loop
task – function called at each step of the loop
varia ([str]) – names of the variational parameters
P ({str (float,float)}) – dict of parameters to vary with a tuple of initial and final values
predict (boolean) – if True, uses a linear or quadratic predictor

loop_from_file(task, file)¶

Performs a task ‘task’ over a set of model parameters defined in a file. The definition of each model instance must be done in the task ‘task’; it is not done by this looping function.

Parameters:

task – function (task) to perform
file (str) – name of the data file specifying the solutions, in the same tab-separated format usually used to write solutions

parameter_set(opt='all')¶

returns the content of the parameter set

Parameters:: opt (str) – governs the action of the function
Returns:: depends on opt

if opt = ‘all’, all parameters as a dictionary {str,(float, str, float)}. The three components are

the value of the parameter,
the name of its overlord (or None),
the multiplier by which its value is obtained from that of the overlord.

if opt = ‘independent’, returns only the independent parameters, as a dictionary {str,float} if opt = ‘report’, returns a string with parameter values and dependencies.

parameter_string(clus=None, CR=False, constr=False)¶: Returns a string with the model parameters. Used for including in plots. :param int clus : cluster label to print the parameters of (starts at 1). If 0, prints lattice parameters only. If None, prints all parameters. :param boolean CR : if True, puts each parameter on a line. :param boolean constr : if True, also includes constrained parameters

parameters()¶

returns the values of the parameters in the parameter set, in the form of a dict.

Returns:: a dict {string,float}

print_model(filename)¶

Prints a description of the model into a file

Parameters:: filename (str) – name of the file
Returns:: None

set_basis(B)¶

Define the working basis in terms of a physical basis, i.e., provides a transformation matrix between the two.

Parameters:: B – the basis (a (D x 3) real matrix)
Returns:: None

set_parameter(name, value, pr=False)¶

sets the value of a parameter within a parameter_set

Parameters:

name (str) – name of the parameter
value (float) – its value

Returns:

None

set_parameters(params)¶

Defines a new set of parameters, including dependencies

Parameters:: params (tuple/str) – the values/dependence of the parameters (array of 2- or 3-tuples), or string containing syntax (preferred method). See section in the documentation or examples for more details.

set_params_from_file(out_file, n=0)¶

sets the parameters in the parameter_set object from a file

Parameters:

out_file (str) – name of output file from which parameters are read
n (int) – line number of data in output file (excluding titles)

Returns:

nothing

set_target_sectors(sec)¶

Sets the Hilbert space sectors in which to look for the ground state. Each sector is specified by a string of the form ‘Rx:Ny:Sz’ where x is the irreducible representation label (starts at 0), y is the number of electrons and z is twice the total spin projection. For instance, ‘R0:N7:S1’ means 7 electrons and total spin projection 1/2, in the trivial representation. If more than one sector must be explored, their corresponding strings are separated by ‘/’, e.g. ‘R0:N7:S1/R0:N7:S-1’.

Parameters:: sec ((str)) – the target sectors
Returns:: None

Defining lattice models¶

A simple example¶

A more complex example¶

Other examples¶

Class lattice_model¶

Table of Contents

Previous topic

Next topic

This Page
